Aidlin Cap Sorter Feeder

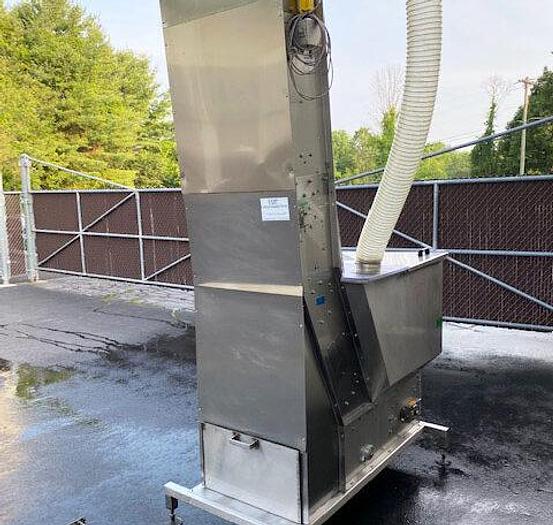

Aidlin Cap Sorter Feeder Aidlin Waterfall Style Cap Sorter Feeder Model CF 2024

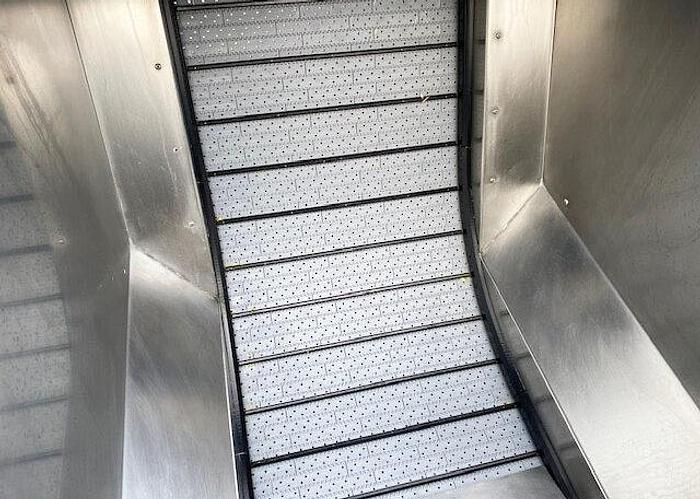

The Aidlin Cap Feeder combines the functions of cap storage, cap sorting, and cap elevation. The Cap Feeder has low space requirements, while cap replenishment takes place at floor level height, ensuring operator safety. The unit is capable of running plastic flat caps, sport caps and metal caps. Aidlin Waterfall Cap Feeder Sorter Model CF 2024 was last running 83mm Plastic Caps using pleated belts to sort/feed caps to the chute and onto the capper.

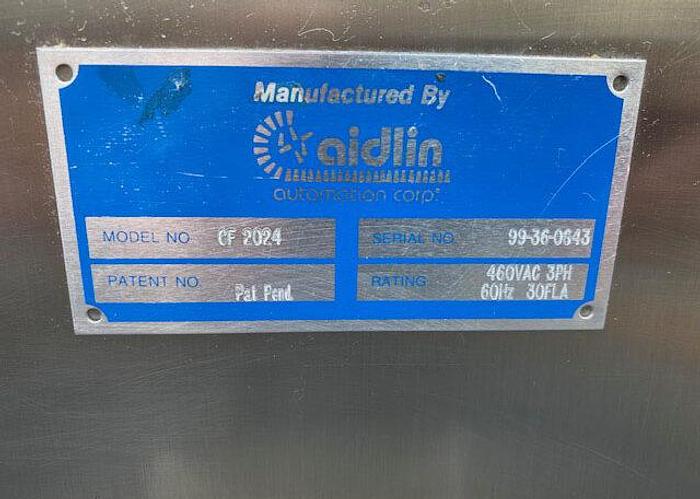

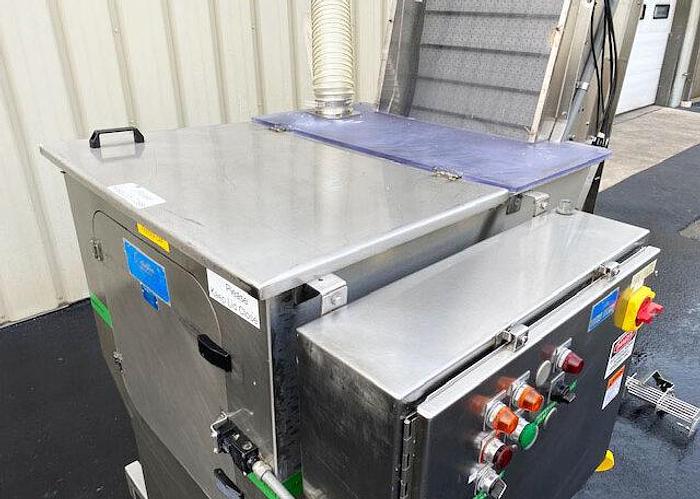

Features and Benefits: – LH Cap Discharge – Stainless Steel Construction – Stainless Steel Electrical Panel – Previously running 83mm flat plastic screw caps – Cap Discharge Height 115” – Distance Between Cap Belt Cleats/Slats 3-7/8” – 24” Wide Cleated Cap Belt – 20 Cubic Ft. Bulk Cap Hopper 40” L x 36” W x 36” Deep with Lexan Cover – Electrical 460 Volt, 3 Ph, 60 Hz, 30 FLA – Banner Photo Eyes – Operator Controls with E-Stop – Includes Existing Cap Chute (shown in pictures) – Threaded Leg Levelers – Overall Dimensions 64” L x 48” W x 134” H
