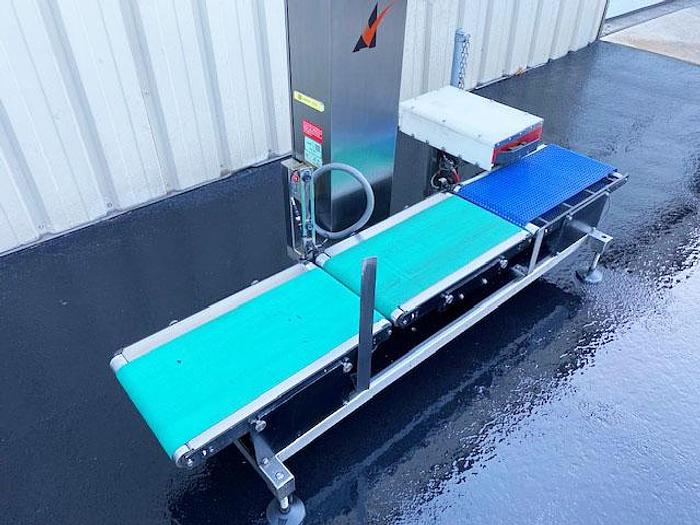

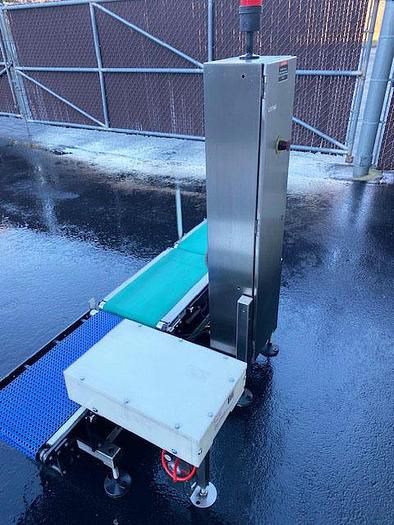

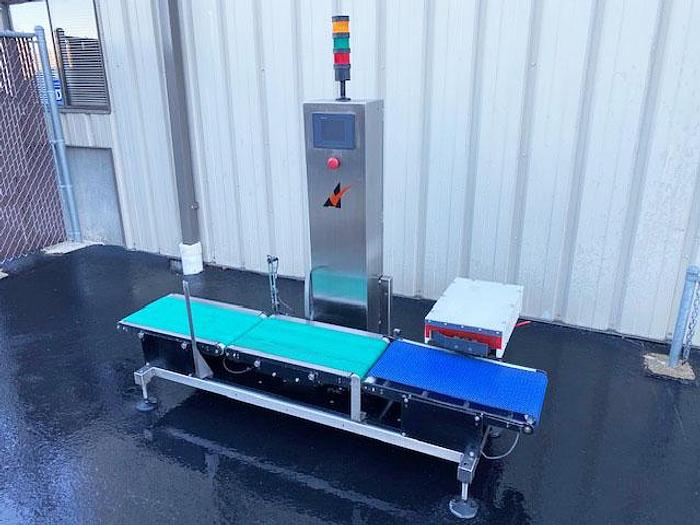

All-Fill Checkweigher complete with Reject Station

All-Fill Checkweigher with Reject Station

Model MW-16 Checkweigher for accurate weight control of product

For fast and accurate weight control of cases, bulk bagged products, corrugated boxes or other medium weight items up to 35 lbs., trust All-Fill model MW-16 checkweigher to get the job done. Consisting of a versatile digital strain gauge load cell, the MW/16 can operate at speeds of 70 packages per minute with an accuracy of ± 2 grams depending on application.

Details:

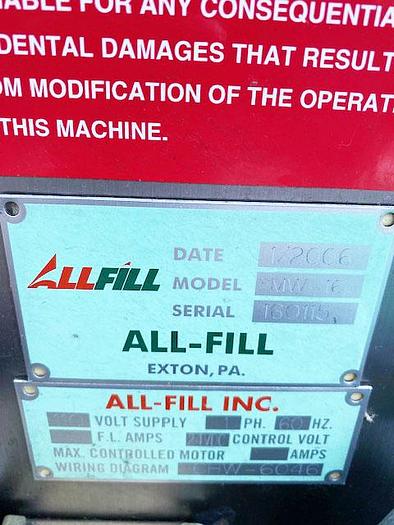

- Model Number MW-16

- Serial Number 160115

- Year 2006

- Manufacturer: All-Fill Inc., Exton PA

- Maximum Product Weight 35 lbs.

- Factory Rated up to 70 PPM

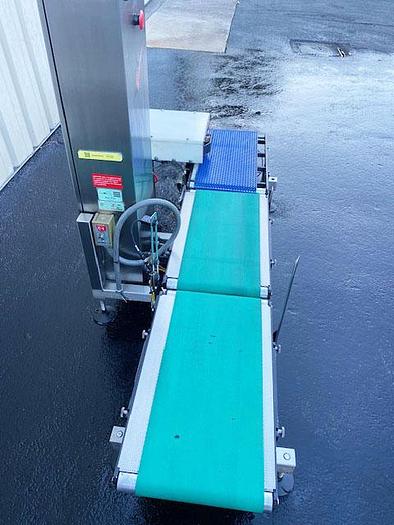

- 14.5“ Wide Conveyor Belt - Frame

- Accuracy of + or – 2 grams

- Stainless Steel Frame Construction

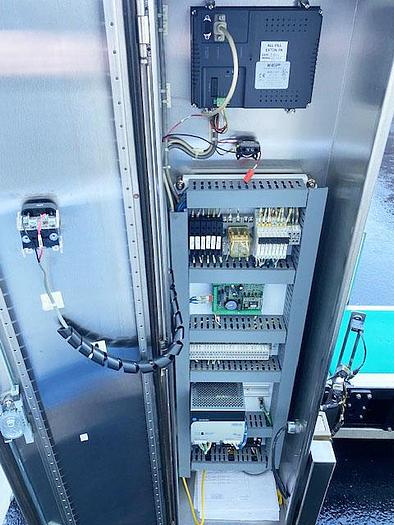

- Stainless Steel Electrical Enclosure

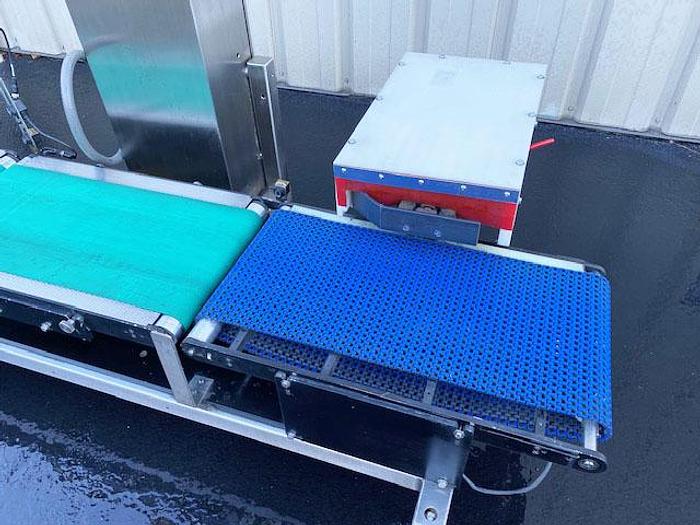

- Pneumatic Rejection

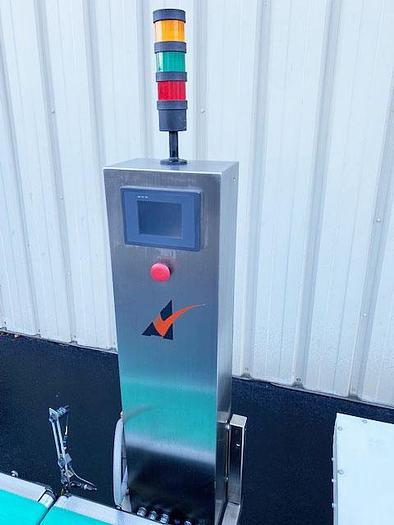

- Operator Interface Touch Screen

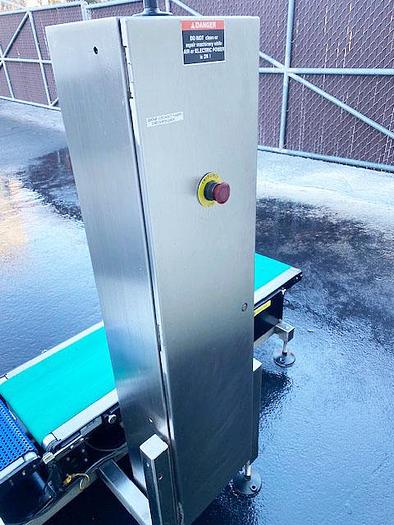

- E-Stop

- Stack Light Indicator

- Electrical 110 Volt, 1 Ph, 60 Hz,

- (7) Threaded Leveler Legs

- Conveyor Elevation 16 inches (adjustable)

- Condition: Used

- Overall Dimensions 79” L x 38” W x 70” H

See attached PDF brochure for more details
